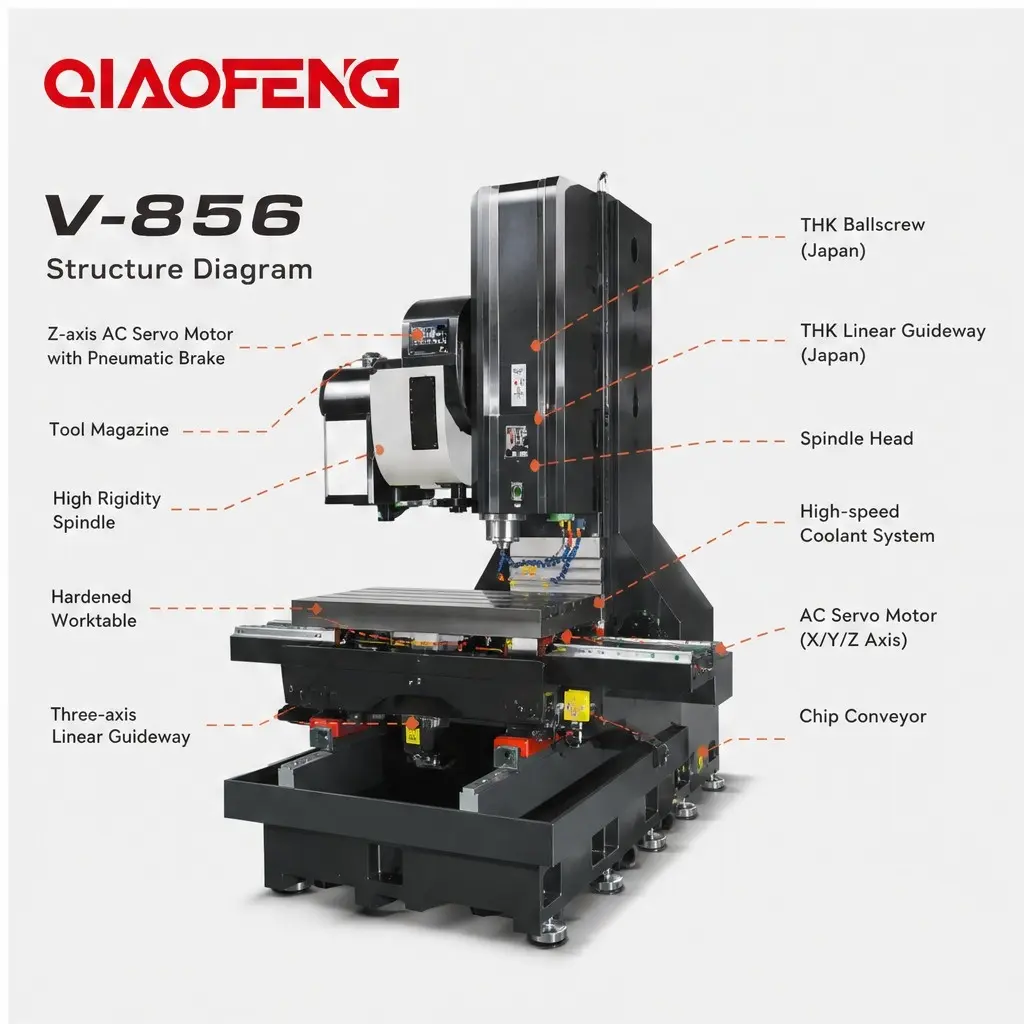

QIAOFENG V-856 VMC vertical machining center features 3-linear rail system, BBT40/155 spindle at 12,000RPM, and 0.003mm positioning accuracy — built for precision mold and parts manufacturing.
Quality Assurance
1-Year Warranty • Lifetime Technical Support
Technical Support
24/7 Online Assistance • Free Remote Training
Global Certifications
CE • ISO 9001 • SGS Certified Manufacturer
Factory Direct & Fast Delivery
30-45 Days Lead Time • Worldwide Shipping
Description

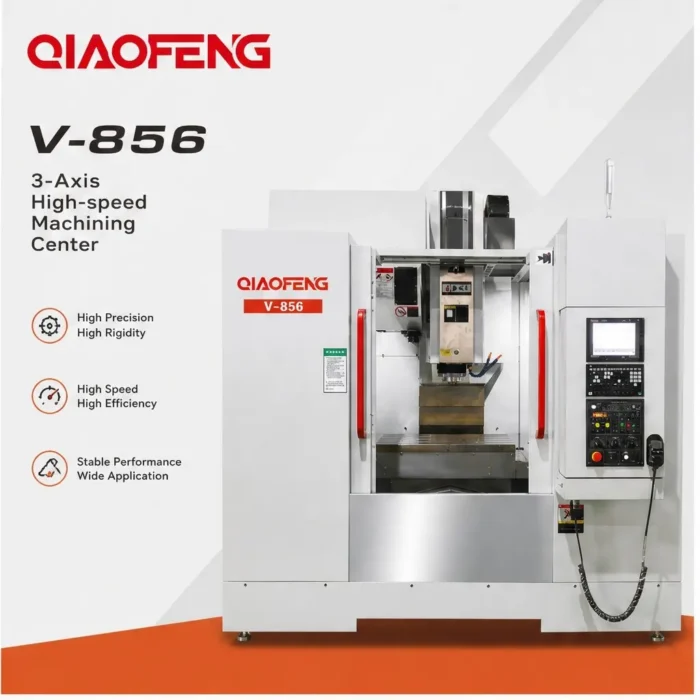

V-856 — Product Overview
3-Linear Rail · High-Speed VMC
V-856
Vertical Machining Center
12,000
Max RPM
830mm
X-Axis Travel
BBT40
Spindle / Ø155mm
0.003mm
Positioning Accuracy
Full Specifications — V-Series Comparison
| Parameter | Unit | V-850 | V-855 | V-856 ★ | V-1160 | V-1165 | V-1380 | V-1380S | V-1580 |
|---|---|---|---|---|---|---|---|---|---|
| X-Axis Travel | mm | 800 | 850 | 830 | 1100 | 1100 | 1300 | 1300 | 1500 |
| Y-Axis Travel | mm | 500 | 550 | 500 | 600 | 600 | 800 | 800 | 700 |
| Z-Axis Travel | mm | 550 | 550 | 450 | 700 | 600 | 700 | 700 | 700 |
| Table Size (L×W) | mm | 1000×500 | 1000×500 | 1000×500 | 1200×600 | 1200×600 | 1400×800 | 1500×800 | 1700×800 |
| Max Table Load | kg | 600 | 600 | 600 | 800 | 800 | 1000 | 1000 | 1200 |
| Spindle Taper | — | BBT40/140 | BT40/150 | BBT40/155 | BT40/150 | BBT40/150 | BT40/150 | BT40/155 | BT50/120 |
| Max Spindle Speed | rpm | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 | 8,000 | 8,000 | 8,000 |
| Spindle Motor Power | kW | 7.5 | 11/15 | 11/15 | 11/15 | 11/15 | 15/18.5 | 15/18.5 | 15/18.5 |
| Rapid Feed (X/Y/Z) | m/min | 48/48/48 | 36/36/36 | 36/36/36 | 30/30/30 | 30/30/30 | 30/30/30 | 30/30/30 | 24/24/20 |
| Ballscrew (X/Y/Z) | mm | Ø36×16 | Ø36×16 | Ø40×16 | Ø40×12 | Ø40×12 | Ø40×12 | Ø40×12 | Ø50×10 |
| Linear Rail (X/Y/Z) | mm | 45/45/45 | 45/45/45 | 45/45/45 | 45/45/45 | 45/45/45 | 45/45/45 | 45/45/45 | 45/45/45 |
| ATC Capacity | pcs | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Positioning Accuracy | mm/300mm | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 |
| Repeat Positioning | mm/300mm | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 |
| Power Supply | KVA | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 35 |
| Machine Weight | T | 5.5 | 5.6 | 5 | 8 | 8 | 13 | 13 | 13 |
Ready to Upgrade Your Machining Capability?
Get a customized quote for the V-856 — our engineers respond within 24 hours.
WHY PARTNER WITH QIAOFENG CNC?
YOUR TRUSTED SOURCE FOR
PRECISION MACHINING.
-
Turnkey Machining Solutions (Covering VMC, HMC, 5-Axis, CNC Lathes & Grinding Machines)
-
Rigorous Quality Control (100% Laser Interferometer & Ballbar tested before delivery + Full QC Reports)
-
Global Engineering Support (Overseas installation, training, and fast spare parts dispatch)
-
24/7 Expert Technical Assistance (Direct support from experienced mechanical engineers, not just sales)
-
Flexible OEM/ODM Customization (Tailored machine configurations, sheet metal design & brand identity)
CNC Machining Centers (Milling Solutions)
VMC (Vertical Machining Center)
Best for: Complex surfaces & high-precision parts.
- Flexible 3+2 axis configuration.
- Vertical spindle for excellent cutting rigidity.
- High-speed ATC (Automatic Tool Changer).
HMC (Horizontal Machining Center)
Best for: Box-type parts & mass production.
- Horizontal spindle design.
- Outstanding chip evacuation performance.
- Ideal for heavy-duty continuous cutting.
GMC (Gantry Machining Center)
Best for: Heavy & oversized workpieces.
- Ultra-large span bridge structure.
- Exceptional stability and vibration absorption.
- Perfect for aerospace and large mold industries.
5-Axis Machining Center
Best for: Arbitrary complex spatial surfaces.
- Ultimate precision and surface finish.
- Complete multi-sided machining in a single setup.
- Significantly reduces fixture costs and clamping errors.
CNC Lathes (Turning Solutions)
Turn-Mill Center
Best for: Multi-process complex components.
- Integrates turning and milling capabilities.
- One setup for complete machining.
- Drastically reduces handling time and errors.
Gang Tool Lathe
Best for: Mass production of small/micro parts.
- Lightning-fast tool change mechanism.
- Compact footprint saves factory space.
- The ultimate profit-maker for high-volume orders.
Slant Bed CNC Lathe
Best for: Medium to large precision parts.
- 45°/60° slant bed design.
- Perfect chip flow and ergonomic access.
- High structural rigidity for heavy cutting.
Precision Grinding & EDM Equipment
Milling & Grinding Machines
Best for: High-precision surface treatments.
- Covers universal milling to precision grinding.
- Ensures superior surface flatness and finish.
- Stable hydraulic and spindle systems.
EDM & WEDM Series
Best for: Ultra-hard materials & complex cavities.
- High-precision electrical discharge machining.
- Perfect for precise contour cutting.
- Low wire consumption and high efficiency.
Precision Measurement Equipment (Metrology Solutions)
Vision Measurement Machine (VMM)
Best for: High-precision 2D/2.5D dimensional inspection.
- Advanced optical system for accurate non-contact measurement.
- Automated edge detection and programmable lighting.
- Ideal for flat parts, stamped components, and PCBs.
Instant Vision Measuring System
Best for: Rapid batch inspection of small and micro parts.
- One-shot measurement of multiple dimensions in seconds.
- Double telecentric lens eliminates distortion and operator errors.
- Significantly boosts QA efficiency for high-volume production.
Coordinate Measuring Machine (CMM)
Best for: Complex 3D spatial geometry and GD&T inspection.
- High-precision tactile probing for full 3D analysis.
- Ultra-stable granite structure ensures measurement accuracy.
- Perfect for aerospace, automotive, and precision mold parts.
Vertical Machining Center
Turret Milling Machine
Machining Center Workshop
QIAOFENG
PREMIUM MACHINE CONFIGURATION

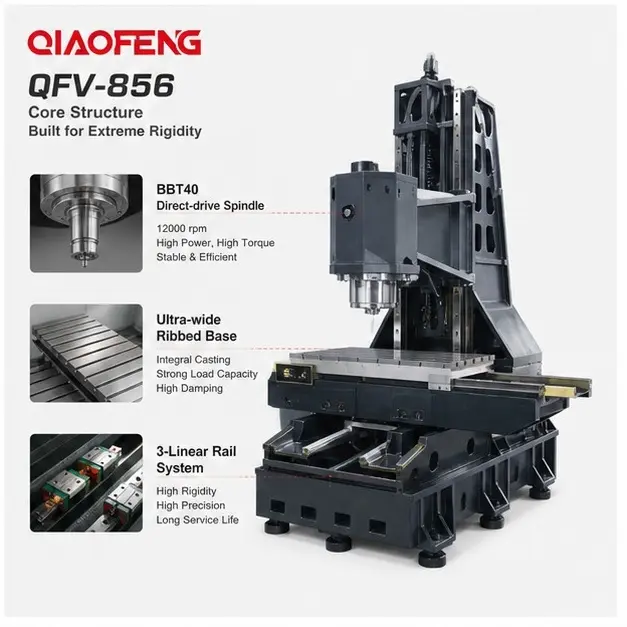

Equipped with a high-speed 12000RPM BBT40 spindle. The dual-contact design significantly enhances rigidity and minimizes vibration during high-speed machining.
Standard fully injection-molded connectors offer superior oil and water resistance. Features metal retainers for encoder cables, ensuring uninterrupted signal transmission.
Standard SMC components featuring a high-precision 3-stage filter. Meets CMM-level air source standards to protect sensitive internal valves and ensure reliability.
Standard equipped with premium Japanese Fuji polyurethane hoses. Renowned for their exceptional flexibility, pressure resistance, and long-lasting durability.
Premium electrical cabinet built with authentic Schneider low-voltage components. Neatly wired for maximum safety, stability, and zero-downtime performance.

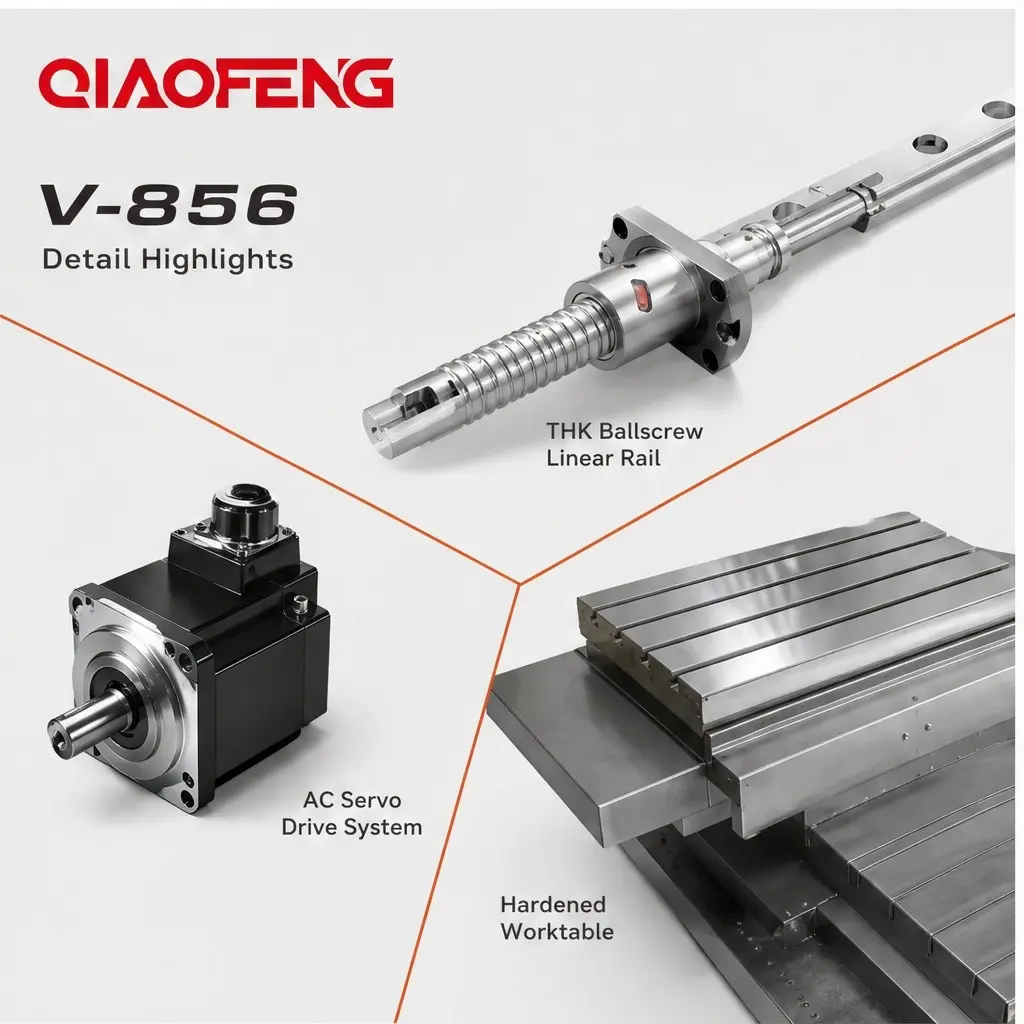

Optional upgrade to world-class Japanese THK linear motion components. Guarantees micro-level positioning accuracy, smooth motion, and extreme load capacity.
OPTIONAL CONFIGURATIONS & ACCESSORIES
QIAOFENG
CNC Control Systems
GSK
Siemens
Fanuc
Mitsubishi
KND
SYNTEC
Tooling Systems
6/8 Position
Electric Turret
Electric Turret
8/12 Position
Hydraulic Turret
Hydraulic Turret
Servo Turret
Power Turret
Power Turret
+ Y Axis
+ Y Axis
Clamping & Support
Hydraulic Chuck
Pneumatic Chuck
Hydraulic/Pneumatic
Tailstock
Tailstock
Manual Steady
Rest
Rest
Hydraulic
Steady Rest
Steady Rest
Automation & Measurement
Servo Feeder
Oil Bath Feeder
Parts Catcher
Renishaw Arm Type
Tool Setting Probe
Tool Setting Probe
Renishaw Workpiece
Measuring Probe
Measuring Probe
Chip Management & Environment
Chain Type
Chip Conveyor
Chip Conveyor
Screw Type
Chip Conveyor
Chip Conveyor
Oil Mist
Collector
Collector
Oil-Water
Separator
Separator
Electrical
Cabinet AC
Cabinet AC
Safety Door
Automatic Door
RIGOROUS QUALITY ASSURANCE
100% Inspected. Micro-level precision guaranteed before delivery.
01 Natural Aging & Stress Relief
Castings undergo long-term natural aging to eliminate internal stress and ensure lifetime stability.
02 Traditional Hand Scraping
Master craftsmen perform hand scraping on mating surfaces to achieve ultimate geometric accuracy and oil retention.
03 Guideway Hardness Testing
Rigorous hardness inspection ensures the guideways meet or exceed HRC52-65 for maximum wear resistance.
04 Squareness & Perpendicularity Inspection
Precision dial indicators are used to verify the absolute squareness of machine axes.
05 Surface Flatness Measurement
Ensuring the table and critical mounting surfaces meet strict flatness tolerances.
06 Spindle Radial Runout Testing
Dynamic testing of the spindle to guarantee micro-level runout for high-precision finishing.
07 Tailstock Coaxiality Alignment
Aligning the tailstock center perfectly with the main spindle for accurate long-shaft turning.
08 Precision Component Inspection
Every critical component is thoroughly measured before final assembly.
09 Renishaw Ballbar Circularity Test
Verifying servo tuning and dynamic contouring accuracy using industry-standard Ballbar systems.
10 Laser Interferometer Calibration
100% full-stroke laser calibration for pitch error compensation and ultimate positioning accuracy.
THE QIAOFENG DIFFERENCE
WHY DETAILS MATTER
✔ QIAOFENG Standard
✖ Other Brands
PNEUMATIC HOSES
Japan Fuji PU Hoses: High flexibility & corrosion-resistant. Will not harden or crack even in low temperatures.
Standard Hoses: Prone to rapid aging, swelling, and cracking under continuous pressure.
AIR FILTRATION
SMC 3-Stage Filtration: CMM-grade air purity with auto-drainage. Perfectly protects sensitive solenoid valves from burning out.
Basic Single-Stage Filter: Poor moisture/oil separation leads to clogged and damaged pneumatic valves.
ELECTRICAL CONTACTORS
Premium Schneider Contactors: Arc-free operation ensures stable voltage, protecting the core CNC circuit boards from power surges.
Generic Contactors: Frequent sparking and voltage spikes risk damaging the expensive motherboard.
CABLE CONNECTORS
Fully Injection-Molded Connectors: 100% oil and water-resistant. Metal retainers secure encoder cables, preventing signal loss.
Standard Plastic Connectors: Vulnerable to coolant ingress. Lack of retainers causes loose connections and machine alarms.
QIAOFENG
ABOUT QIAOFENG CNC
Empowering Global Manufacturing with High-Precision Machining Solutions.
Company Intro
QIAOFENG is a premier manufacturer of precision CNC machine tools in China. With a state-of-the-art manufacturing facility and a robust R&D team, we provide not just machines, but complete, customized turnkey production lines tailored to your specific needs.
We are committed to maximizing your ROI through optimized machining processes. Our comprehensive product portfolio covers:
Milling Solutions
3+2 Axis VMC,
High-Efficiency HMC,
Heavy-Duty Gantry (GMC),
and Ultimate Precision
5-Axis Centers.
High-Efficiency HMC,
Heavy-Duty Gantry (GMC),
and Ultimate Precision
5-Axis Centers.
Turning Solutions
Turn-Mill Centers,
High-Speed Gang Tool
Lathes, and Heavy-Cutting
Slant Bed Lathes.
High-Speed Gang Tool
Lathes, and Heavy-Cutting
Slant Bed Lathes.
Precision Grinding & EDM
Surface Grinders,
Milling & Grinding combos,
and high-precision
EDM/WEDM series.
Milling & Grinding combos,
and high-precision
EDM/WEDM series.
Why Us
By partnering with QIAOFENG, you gain access to factory-direct pricing, rigorous quality control (100% Laser Interferometer tested), and flexible OEM/ODM capabilities. We deliver suitable and cost-effective solutions with fast lead times.
RIGOROUS INSPECTION PROTOCOLS
Data-Driven Precision. 100% Tested Before Delivery.
Spindle Dynamic Balancing
Every spindle undergoes a strict dynamic balancing process to eliminate micro-vibrations, ensuring flawless surface finishes and extending tool life during high-speed machining.
Balance Point Detection
Precision Weight Calibration
Digital Waveform Verification
3-Axis Laser Calibration
100% INSPECTED. NO EXCEPTIONS.
We don't rely on random batch testing. Every single VMC is strictly calibrated using advanced laser interferometers to guarantee micro-level positioning accuracy and repeatability across the X, Y, and Z axes.
GLOBAL PARTNERSHIPS
Delivering high-precision CNC solutions to over 50 countries. We warmly welcome clients from all over the world to visit our manufacturing facility.
Technical discussion with European clients.
On-site machine inspection & testing.
Strategic cooperation agreement signing.
Under management system we control the quality strictly from raw material to finished product
