If you’re new to CNC machining, one of the most critical concepts you’ll encounter is the CNC tool length offset. This setting tells your machine controller exactly how long each tool is, preventing costly crashes and ensuring every cut lands at the correct depth. In this comprehensive guide from QiaoFeng — a CNC machine manufacturer based in Dongguan, China, with over 15 years of industry experience — we’ll explain the CNC tool length offset definition, how to measure it, and how to apply it in your G-code programs. By the end, you’ll confidently use CNC H offset and CNC tool compensation like a seasoned machinist.

The global CNC machines market is projected to reach USD 105.7 billion by 2031, growing at a CAGR of approximately 7.2% (Mordor Intelligence, 2024^[1]). As shops scale up production and run more complex multi-tool programs, proper CNC tool length offset management becomes a foundational skill — not an optional one. Grand View Research further notes that the global CNC machining and turning centers market was valued at USD 25.99 billion in 2023 and is expected to grow at a CAGR of 6.6% through 2030^[2], driven largely by automation adoption and tighter part tolerances. According to Fortune Business Insights, the CNC machine market is projected to grow from USD 108.58 billion in 2026 to USD 251.61 billion by 2034^[3] — making precision setup practices like tool length offsets more commercially important than ever.

1. What Is CNC Tool Length Offset?

A CNC tool length offset (commonly called the H offset) is the measured distance from the spindle gauge line to the tip of the cutting tool. Each tool loaded in your machine has its own unique offset value stored in the controller’s offset register. When your G-code calls a tool with an H code — for example, G43 H01 — the controller automatically shifts the Z-axis by that stored value, placing the tool tip at exactly the programmed depth relative to the workpiece zero point.

Without a correctly set CNC tool length offset, the machine has no way of knowing whether the active tool is a 50 mm drill or a 120 mm boring bar. Every tool would require a manual Z re-touch, wasting time and introducing human error on every single tool change.

Why It Matters

Imagine a program that calls a drill, an end mill, and a tap in sequence. Each tool has a different physical length. A properly configured CNC tool length offset ensures that regardless of which tool is in the spindle, the Z-axis always moves to the programmed depth — automatically and repeatably. This is the bedrock of accurate, multi-tool CNC machining.

2. How to Measure CNC Tool Length Offset

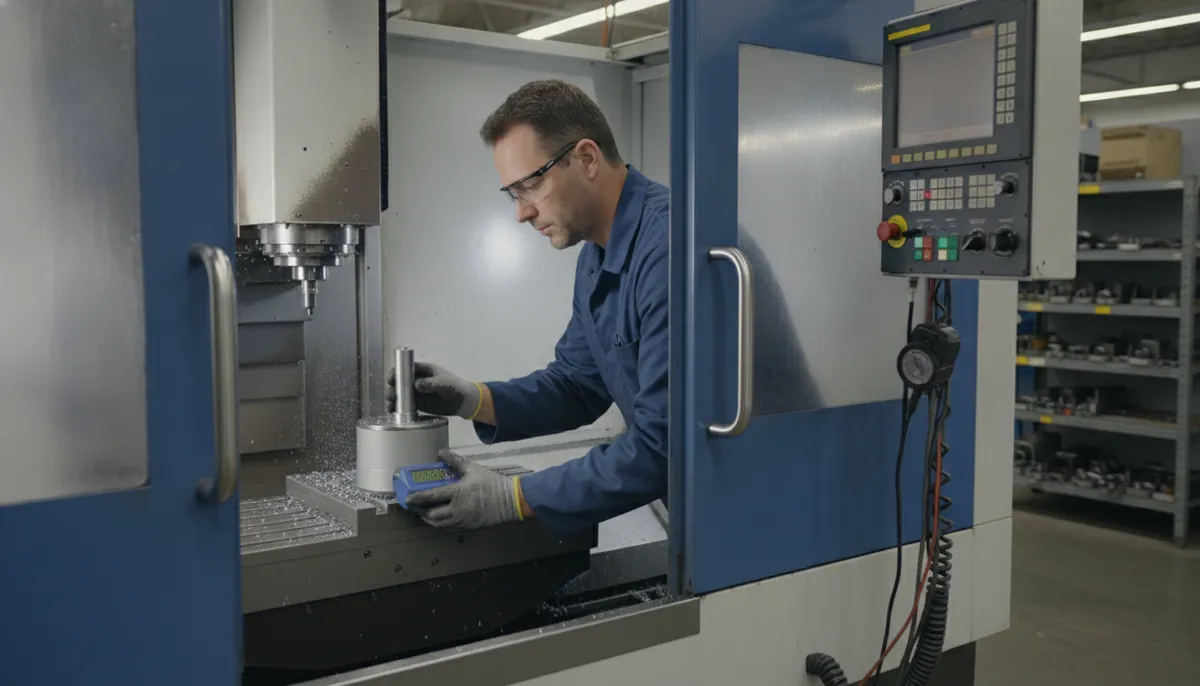

There are two primary methods for CNC tool length measurement: using an offline tool presetter, or performing an on-machine touch-off. For beginners, the on-machine touch-off method is the most accessible:

1. Install the tool securely in the spindle with the correct tool holder.
2. Jog the Z-axis down until the tool tip just contacts a fixed reference surface — typically a precision gauge block placed on the machine table, or a dedicated tool-setting probe.
3. Record the machine’s Z-axis position (shown on the controller display) and enter that value into the corresponding H offset register (e.g., H01 for Tool 1).
4. Repeat for every tool in the job, always using the same reference surface so all offsets share a common datum.

For higher-volume or higher-precision work, an offline tool presetter measures tool length outside the machine, allowing you to pre-load offset values before the tool ever touches the spindle. This eliminates on-machine measurement time entirely and is the preferred method in production environments.

G-Code Example: Applying CNC Tool Length Offset

Here is a basic example of how CNC tool length offset is called in a Fanuc-style G-code program:

G43 activates the positive tool length offset compensation; G49 cancels it. Always cancel the offset before executing the next tool change to avoid cumulative Z errors.

3. Key Features of CNC Tool Length Offset

Automatic Z-Axis Compensation

The controller automatically adjusts Z-axis movement based on the stored offset value. You write your program once to a single Z datum, and the machine handles the rest — regardless of which tool is active.

Real-world benefit: In a production run of 500 parts, automatic compensation saves roughly 2 minutes per tool change. Over a full shift, that translates to hours of additional cutting time.

Tool Breakage Detection

Many modern CNC controllers compare the measured tool length against the stored offset value at the start of each cycle. If a tool has broken, been loaded incorrectly, or is missing entirely, the machine triggers an alarm before any cutting begins — preventing a potentially expensive crash.

Real-world benefit: Shops using automatic tool-length verification report significant reductions in spindle crashes, eliminating repair costs that can easily run into thousands of dollars per incident.

Wear Compensation

As tools wear down over their service life, the effective tool length changes slightly. Rather than reprogramming the entire job, operators can make small incremental adjustments to the wear offset register to maintain dimensional tolerances without touching the geometry offset.

Real-world benefit: For aerospace components requiring tolerances of ±0.001″, wear compensation allows operators to extend tool life while keeping parts within specification — reducing tooling costs per part.

Multi-Machine Consistency

Once you establish a standardized CNC tool length offset measurement procedure, the same job can be transferred between machines by simply re-measuring offsets on each machine. Programs require no modification.

Real-world benefit: At QiaoFeng, customers running multiple VMCs report dramatically reduced setup times when they implement standardized offset procedures across their machine fleet.

4. Touch-Off vs. Presetter: Which Method Is Right for You?

5. Real-World Use Cases for CNC Tool Length Offset

Use Case 1 — High-Precision Mold Making

Pain point: A mold shop struggled with inconsistent cavity depths when using multiple ball end mills. Each tool had a slightly different length due to variations in tool holders and collet seating depth.

Solution: By implementing a strict CNC tool length offset procedure using an offline presetter, they achieved repeatable cavity depths within 0.0005″, eliminating scrap caused by under- or over-cutting on deep-cavity features.

Use Case 2 — High-Volume Production with Frequent Tool Changes

Pain point: A medical device manufacturer changed tools every 50 parts. Manually touching off each replacement tool caused 8–10 minute delays per changeover.

Solution: They pre-measured all tools in a dedicated tool crib and stored offset values in the controller before the shift began. Tool changes now take under 30 seconds, measurably improving Overall Equipment Effectiveness (OEE).

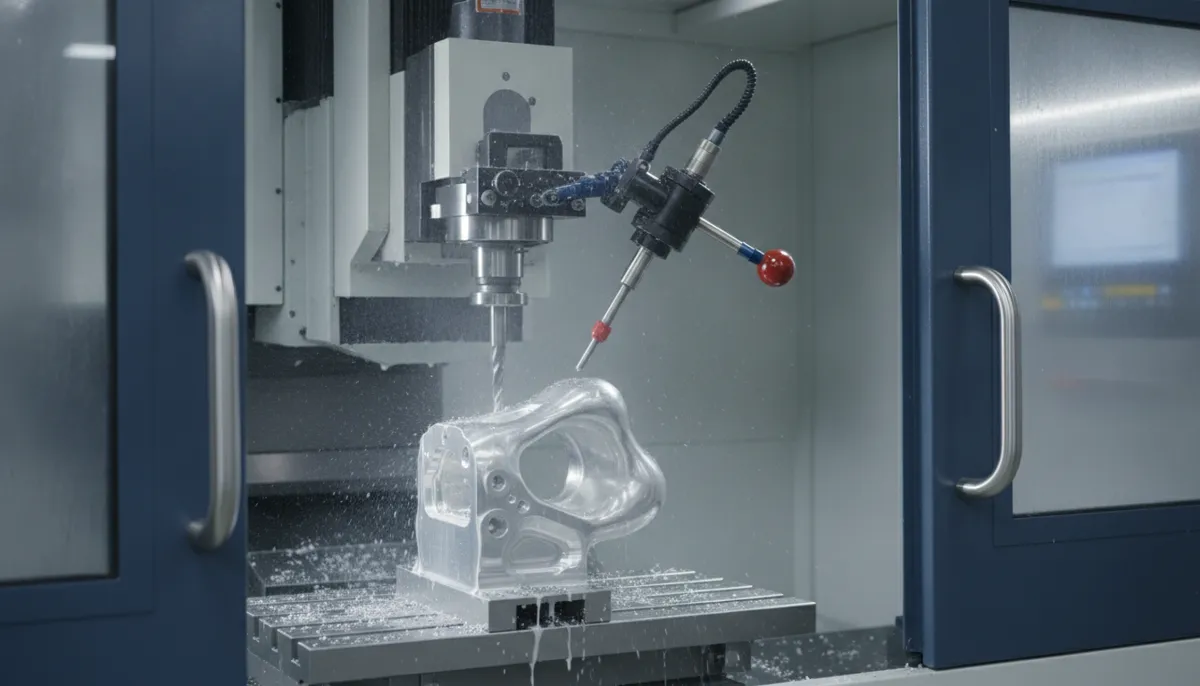

Use Case 3 — 5-Axis Machining of Complex Parts

Pain point: In 5-axis work, tool length errors are amplified by rotational kinematics. A 0.01 mm offset error can translate to a 0.1 mm or greater positional error at the part surface, especially on long-reach tools.

Solution: Using a calibrated on-machine tool setter with dynamic offset updates before each cycle, a QiaoFeng customer reduced rework rates on complex impeller components from over 15% to under 2%.

Use Case 4 — Lights-Out Automated Machining Cells

Pain point: Unattended overnight machining requires absolute confidence in tool offsets. One shop experienced a crash when a replacement tool was loaded with a different gauge length than expected.

Solution: They integrated an automatic tool measurement probe that verifies and updates the CNC tool length offset for every tool before each cycle begins. Downtime attributable to offset errors dropped to zero.

6. What Our Customers Say

7. Pros and Cons of CNC Tool Length Offset

8. Frequently Asked Questions

What is the difference between tool length offset and tool radius offset?

CNC tool length offset (H offset, activated by G43/G44) adjusts the Z-axis position based on the measured tool length. Tool radius offset (D offset, activated by G41/G42) adjusts the X/Y cutter path to compensate for tool diameter or diameter wear. Both are essential for accurate machining, but they operate on different axes and serve different purposes.

Can I use the same offset values on different machines?

No. Each machine has a unique spindle gauge line and its own Z-axis reference point. Offset values measured on Machine A are not valid on Machine B. You must measure offsets independently on each machine. If you use a standardized tool holder system and an offline presetter, the values may be similar — but always verify on the actual machine before cutting.

How often should I check tool length offsets?

For tight-tolerance work, verify offsets at the start of each shift and after any tool change. For general-purpose machining, weekly checks are typically sufficient. Many modern shops integrate an on-machine tool probe that automatically verifies the CNC tool length offset before every cycle, removing the need for manual checks entirely.

What happens if I enter the wrong offset value?

An incorrect CNC tool length offset will cause the tool to cut at the wrong Z depth. If the offset is too small, the tool will cut deeper than programmed — potentially scrapping the part, breaking the tool, or crashing into a fixture or vise. If the offset is too large, the tool will not cut deep enough, leaving excess material. Always double-check offset values before running a new program, and use dry-run or single-block mode to verify Z positions before full-speed cutting.

What is G43 and G49 in CNC programming?

G43 is the G-code command that activates positive tool length offset compensation, referencing the H register you specify (e.g., G43 H01). The controller adds the stored offset value to all subsequent Z-axis moves. G49 cancels tool length offset compensation and should always be programmed before a tool change to prevent cumulative Z errors.

Does QiaoFeng provide support for setting up tool length offsets?

Yes. QiaoFeng provides free online documentation, video tutorials, and direct technical support for all machines we supply. Our team — with over 15 years of CNC industry experience — can guide you through your entire offset setup procedure. Reach us at bella@qfcncmachine.com or +86 151 1824 3737.
